S-Trap vs P-Trap Toilet: Difference & Buying Guide
Quick answer: Choose an S-trap toilet when the waste outlet goes into the floor. Choose a P-trap toilet when the waste outlet goes through the wall. Neither option is universally better—the correct choice is the one that matches your bathroom’s drainage layout.
When buying a new toilet, most people compare design, colour, price and flushing features first. However, one small technical detail can decide whether the toilet will fit at all: the trap type.
An S-trap and a P-trap perform the same basic job, but they connect to different types of waste outlets. Choosing the wrong one can cause alignment problems, leakage risk, extra plumbing work and unnecessary renovation costs. This guide explains the difference between S-trap and P-trap toilets in simple terms so you can select the right commode for your Indian bathroom.
What Is a Trap in a Toilet?
A toilet trap is the curved passage built into the ceramic body of the toilet. A small amount of water remains inside this bend after every flush. This water creates a seal that helps stop unpleasant sewer gases from entering the bathroom.

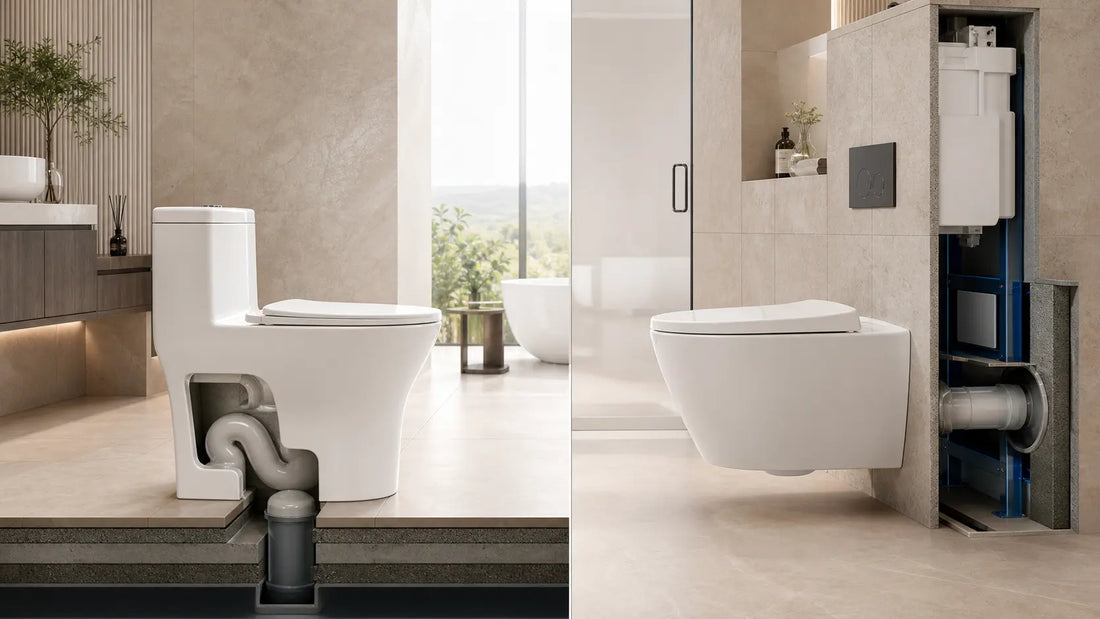

The letters “S” and “P” describe the general direction and shape of the toilet’s outlet path:
- S-trap: the outlet turns downward and connects to a drain in the floor.
- P-trap: the outlet runs horizontally and connects to a drain in the wall.
What Is an S-Trap Toilet?
An S-trap toilet sends waste vertically into a floor outlet. It is commonly found in Indian houses and bathrooms where the soil pipe is installed below the floor slab.
When an S-trap is usually suitable
- Your existing waste outlet is in the floor.
- You are replacing a floor-mounted toilet without changing the plumbing.
- Your toilet model’s set-out matches the distance from the finished wall to the centre of the floor drain.
Advantages of an S-trap toilet
- Works with common floor-outlet plumbing layouts.
- Can make replacement simpler when the existing drain position already matches.
- Available in many floor-mounted and one-piece toilet designs.
Points to check before buying
The floor drain must align with the toilet’s specified set-out. Common sizes in India may include 220 mm, 300 mm and 400 mm, but availability varies by model. Always check the product drawing instead of assuming that every S-trap toilet has the same measurement.
What Is a P-Trap Toilet?
A P-trap toilet sends waste horizontally into an outlet in the wall. This configuration is frequently used for wall-hung toilets, back-to-wall installations and bathrooms designed with concealed plumbing.
When a P-trap is usually suitable
- Your waste outlet comes through the wall.
- You are planning a wall-hung toilet with a compatible concealed cistern and support frame.
- Your plumber has confirmed the outlet height and alignment required by the selected model.
Advantages of a P-trap toilet
- Supports clean, modern bathroom layouts.
- Enables wall-hung installations that keep the floor beneath the toilet open.
- Can make floor cleaning easier when used with a wall-hung WC.
- Works well with planned wall ducts and concealed plumbing systems.
Points to check before buying
A wall-hung P-trap toilet requires more than just the ceramic bowl. The correct carrier frame, concealed cistern, flush plate, wall preparation and professional installation may also be required. Confirm the complete installation system before placing your order.
S-Trap vs P-Trap Toilet: Key Differences
| Feature | S-Trap Toilet | P-Trap Toilet |
|---|---|---|
| Waste outlet direction | Downward into the floor | Horizontal into the wall |
| Common installation | Floor-mounted toilet | Wall-hung or back-to-wall toilet |
| Main measurement | Wall-to-floor-drain centre set-out | Finished-floor-to-wall-outlet centre height |
| Best for replacement | When the existing drain is in the floor | When the existing drain is in the wall |
| Floor cleaning | Depends on the toilet base design | Easier with a wall-hung installation |
| Installation planning | Drain set-out must match | Outlet, frame and cistern must be coordinated |
How to Check Which Trap Your Bathroom Needs
1. Identify the outlet location
Look at where the toilet connects to the waste pipe. A floor outlet generally requires an S-trap model. A wall outlet generally requires a P-trap model.
2. Measure from the finished surfaces
For an S-trap toilet, measure from the finished wall—not the unfinished brick surface or skirting—to the centre of the floor outlet. For a P-trap toilet, confirm the height from the finished floor to the centre of the wall outlet.
3. Compare the measurement with the product drawing
Do not rely only on a product photograph or overall toilet dimensions. The specification sheet should clearly state the trap type and outlet measurement.
4. Ask a plumber to verify before ordering
If the outlet is concealed, under renovation or difficult to measure, get the installer to confirm the requirement. A two-minute site check can prevent expensive rework later.
Which Toilet Is Better for an Indian Bathroom?
The better toilet depends on your site conditions and priorities.
- For a straightforward replacement: use the same outlet type and matching dimensions as the existing toilet unless you are intentionally changing the plumbing.
- For a new bathroom: choose the toilet early so the plumber can position the drainage outlet according to its technical drawing.
- For a compact modern bathroom: a wall-hung P-trap toilet can create more visible floor area and a lighter appearance.
- For a practical floor-mounted setup: an S-trap one-piece toilet can be a convenient choice when the floor outlet is already correctly positioned.
- For easier cleaning: consider a wall-hung model or a smooth, fully skirted floor-mounted design with fewer external crevices.
Trap type should be treated as a compatibility decision—not a quality ranking. Build quality, ceramic finish, flushing performance, seat comfort, water efficiency and installation quality still matter after the correct outlet type has been selected.
Common Buying and Installation Mistakes
Buying before measuring the outlet
A toilet can look perfect online and still be unusable in your bathroom if the trap or set-out does not match.
Assuming all one-piece toilets use an S-trap
Many one-piece toilets are made for floor outlets, but trap availability can differ by model or variant. Check the selected product specification every time.
Choosing a wall-hung bowl without the complete system
A wall-hung installation must be planned with a compatible concealed cistern, carrier frame and flush plate. The supporting wall or duct also needs suitable preparation.
Ignoring the finished wall and floor thickness
Tile, adhesive, plaster and wall cladding can change the final measurement. Plumbing positions should be checked relative to the finished surfaces.
Using connectors to compensate for a major mismatch
Small approved adjustments may be possible in some installations, but forcing a poorly aligned connection can increase leakage and maintenance risk. Follow the toilet manufacturer’s installation drawing and use a qualified plumber.
Explore Toilets for Your Bathroom
Once you have confirmed your outlet type and measurements, compare styles that suit your bathroom layout:
- Browse one-piece toilets for seamless floor-mounted designs.
- Explore wall-mounted toilets for modern, space-conscious bathroom planning.
- See the latest bathroom collections for new designs and finishes.
Before ordering, review the chosen product’s trap option, technical dimensions and installation requirements. If you need help selecting a compatible model, contact the Belmonte Bath team with a photo and measurements of your existing outlet.
Frequently Asked Questions
What is the main difference between an S-trap and a P-trap toilet?
An S-trap toilet connects to a waste outlet in the floor, while a P-trap toilet connects to a waste outlet in the wall.
Which is better, an S-trap or a P-trap?
Neither is better for every bathroom. The correct option is the one that matches the location and dimensions of your drainage outlet.
Can I install a P-trap toilet on an S-trap floor outlet?
Not as a direct replacement. Changing from a wall outlet to a floor outlet—or the reverse—normally requires plumbing modification and professional site assessment.
How do I measure an S-trap toilet outlet?
Measure horizontally from the finished wall to the centre of the floor drain. Compare this number with the set-out shown in the toilet’s technical drawing.
Are wall-hung toilets P-trap?
Wall-hung toilets generally use a horizontal wall outlet and are therefore P-trap models. They must be installed with a compatible carrier frame and concealed cistern system.
What should I check before buying a toilet online?
Confirm the trap type, outlet measurement, overall dimensions, flushing system, water inlet, seat specifications, included accessories and installation requirements. Ask your plumber to verify the site before ordering.
Final Takeaway
The easiest way to remember the difference is simple: S-trap means floor outlet; P-trap means wall outlet. Check the outlet location, measure from the finished surfaces and compare those measurements with the product drawing before you buy. Once compatibility is confirmed, you can confidently choose the design, comfort and features that suit your bathroom.
